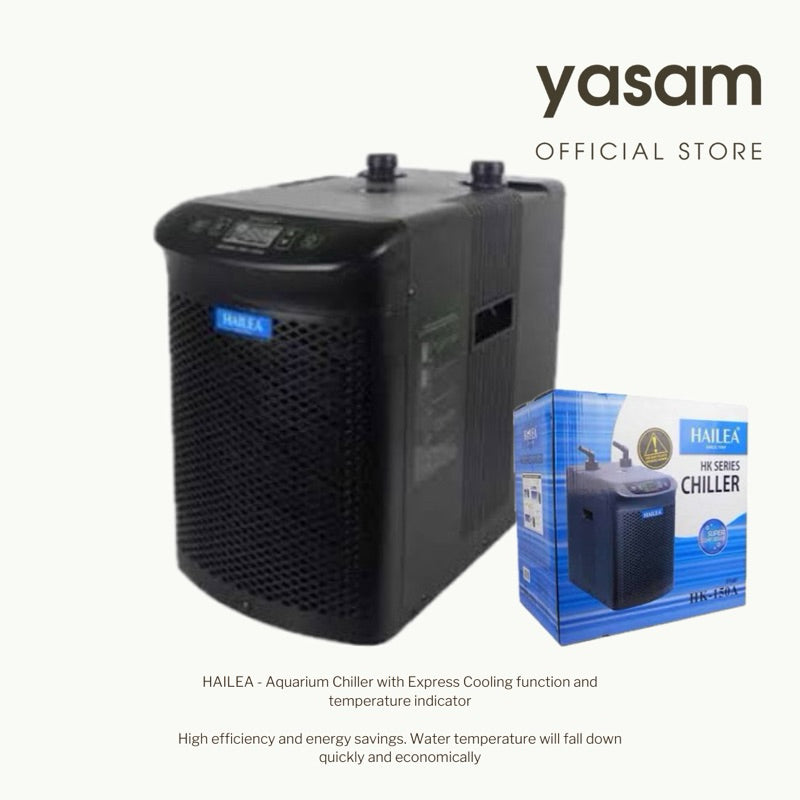

HAILEA - Aquarium Chiller with Express Cooling function and temperature indicator

What is R134a Refrigerant?

R134a refers to the refrigerant gas used in chiller/air condition compressors.

It is a common refrigerant that is used in many air conditioning applications.

Due to the nature of R134a properties which is of a HFC (hydrofluorocarbon) refrigerant, it does not have any ozone depletion potential and has little greenhouse effect.

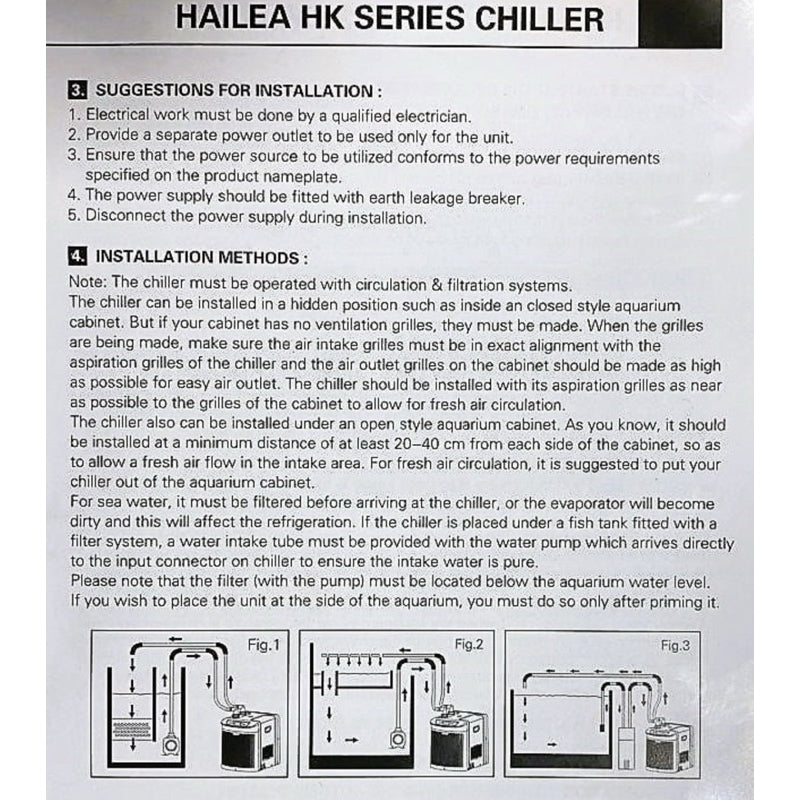

Directions for Use:

During/after transporting and/or fixing up the chiller, allow it to stand upright for at least 3-6 hours before powering it up. This reduces unnecessary damage by allowing the oil and fluid to flow back into the compressor.

Do not place the chiller outdoors or near any heat source.

Do not place the chiller in enclosed cabinets.

Place the chiller approximately 30cm away from walls to facilitate ventilation.

Do not cover the chiller while it is in operation as this will cause over-heating.

For use with marine setups, it is recommended to install the chiller after the filtration systems. This is to ensure the durability and function of the evaporator.

Regular maintenance of the circulating systems, front draft hood and air filters are advised at once every month.

For troubleshooting of issues such as not being able to power on the unit, faulty powering issues, lack of refrigeration, or loud noises / vibration from the unit. Please refer to the instructions booklet for suggestions on basic problem solving.

Provided Accessories and Attachments:

2x Elbow adaptors,

2x Straight adaptors,

2x Inlet and outlet rubber covers,

1x Fuse,

1x Instruction booklet,

2x Metal hose clamps

Technical Data:

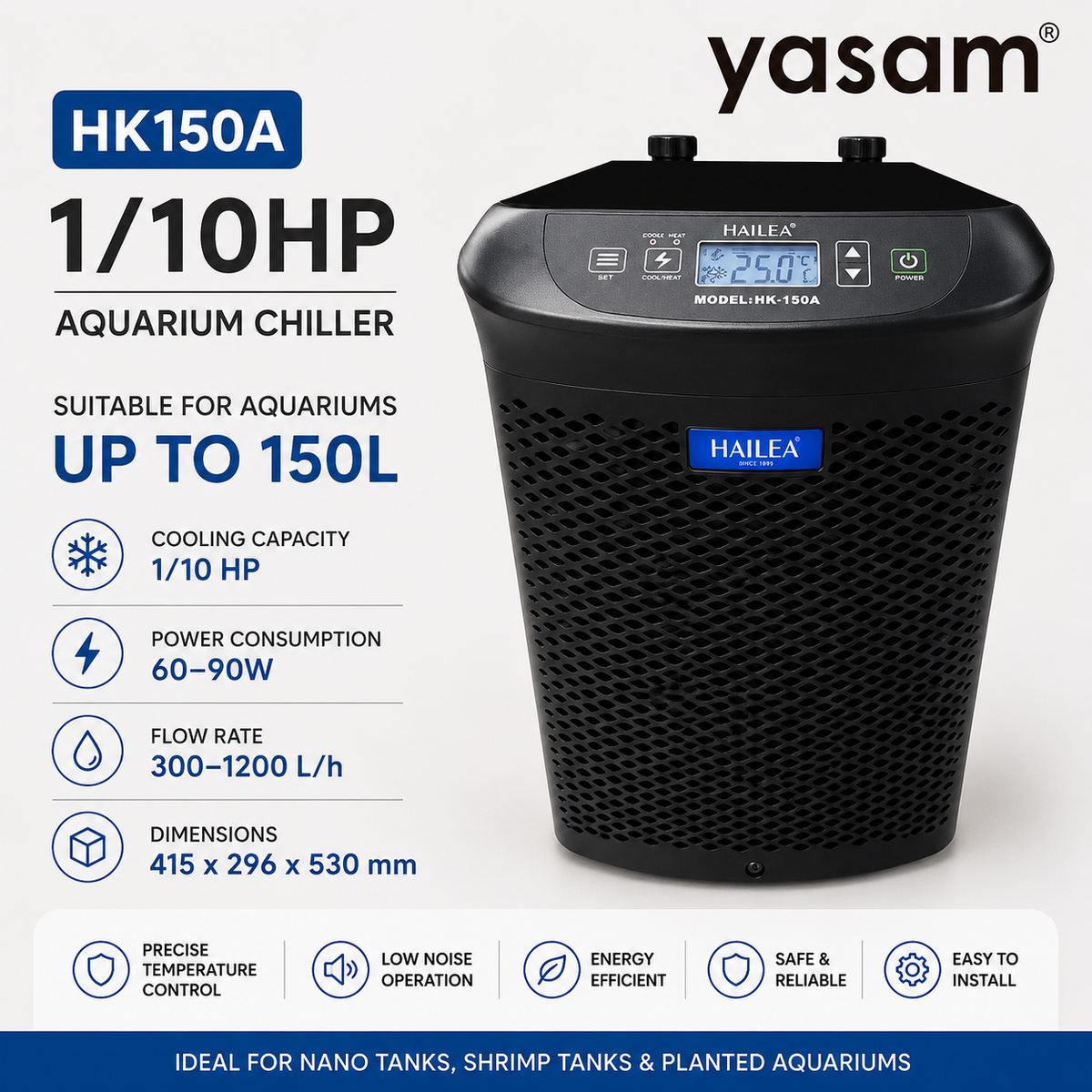

HK150A

Power : 1/10HP

Water Refrigerated : 150L

Iced Medium : R134a

Rate of Flow : 250 - 1200 L/H

Weight : 13kg

Dimension : 430 x 255 x 380mm

Adaptor Diameter: 12mm

HK300A

Power : 1/4HP

Water Refrigerated : 300L

Iced Medium : R134a

Rate of Flow : 1000 - 2500 L/H

Weight : 18.6kg

Dimension : 457 x 330 x 430mm

Adaptor Diameter: 16mm & 19mm

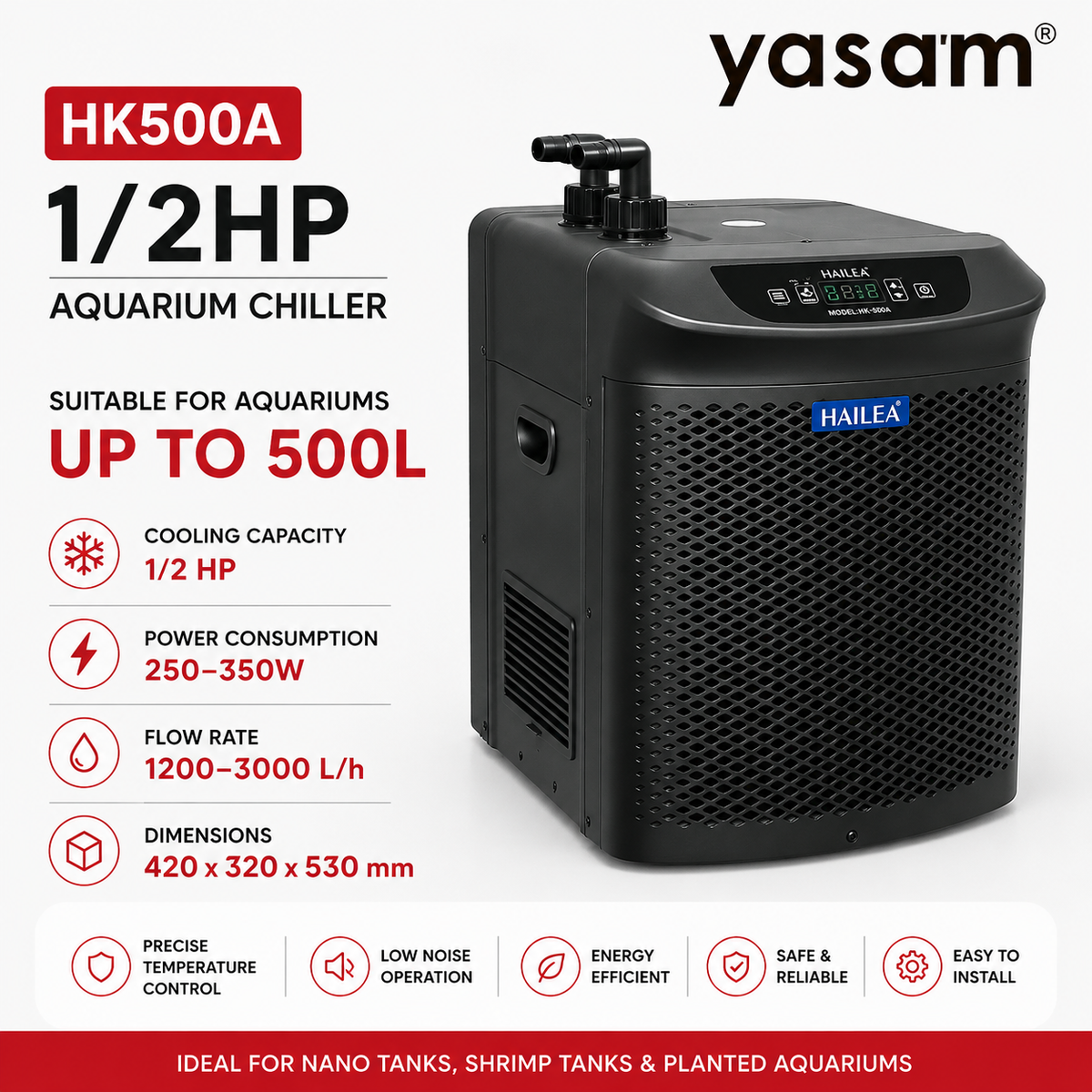

HK500A

Power : 1/2HP

Water Refrigerated : 500L

Iced Medium : R134a

Rate of Flow : 1200 - 3000 L/H

Weight : 20kg

Dimension : 480 x 355 x 480mm

Adaptor Diameter: 16mm & 19mm

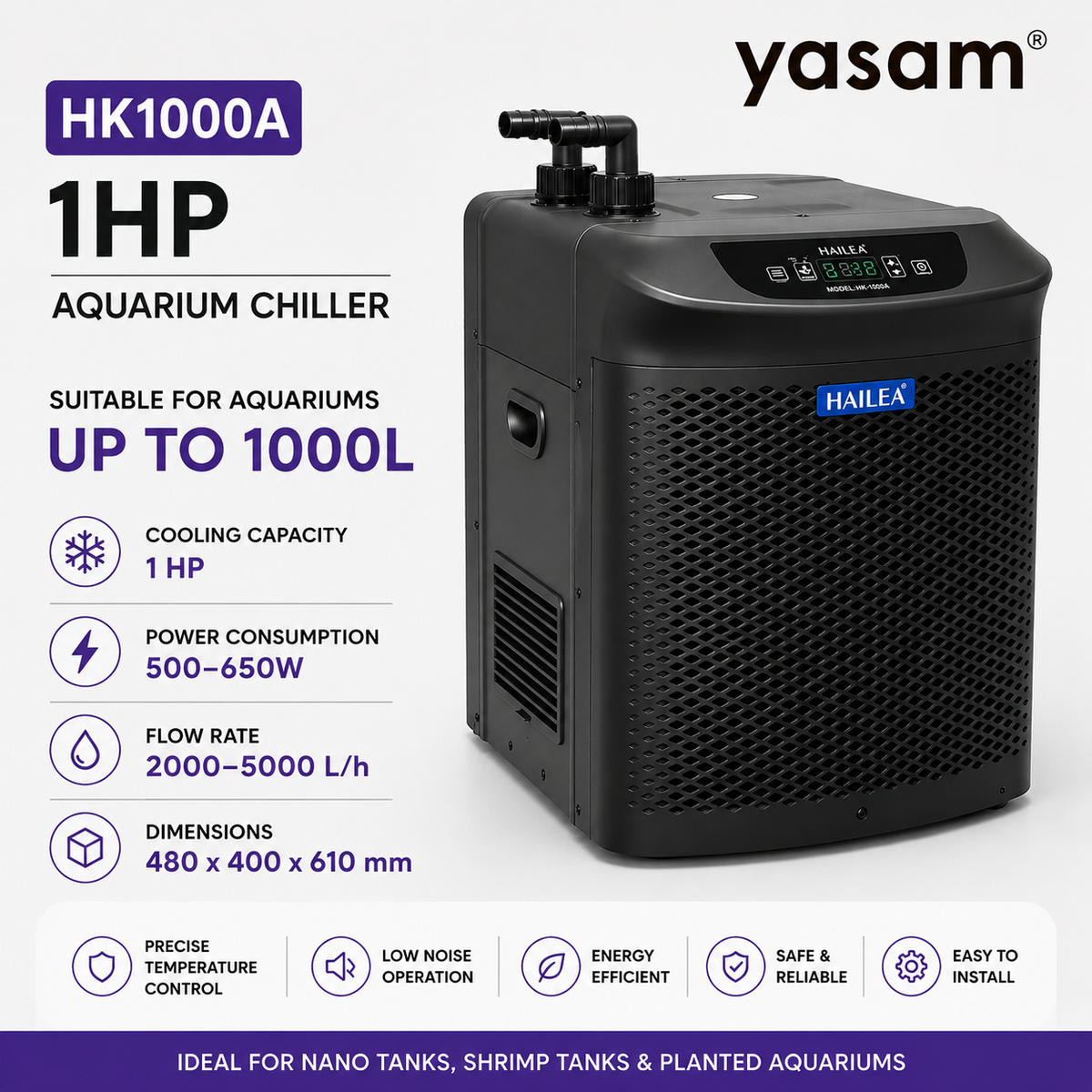

HK1000A

Power : 1HP

Water Refrigerated : 1000L

Iced Medium : R134a

Rate of Flow : 1500 - 4000 L/H

Weight : 31.3kg

Dimension : 560 x 380 x 480mm

Adaptor Diameter: 25mm

HC2200BH

Power: 2 HP

Recommended Tank: 2000 L

Iced Medium : R134a

Pump water flow: 3000-6000 LPH

Size (mm): 634x468x590

Weight (kg): 47

Dimensions: 634mm (L) × 468mm (W) × 590mm (H)

Inlet/Outlet Size: 32 mm
